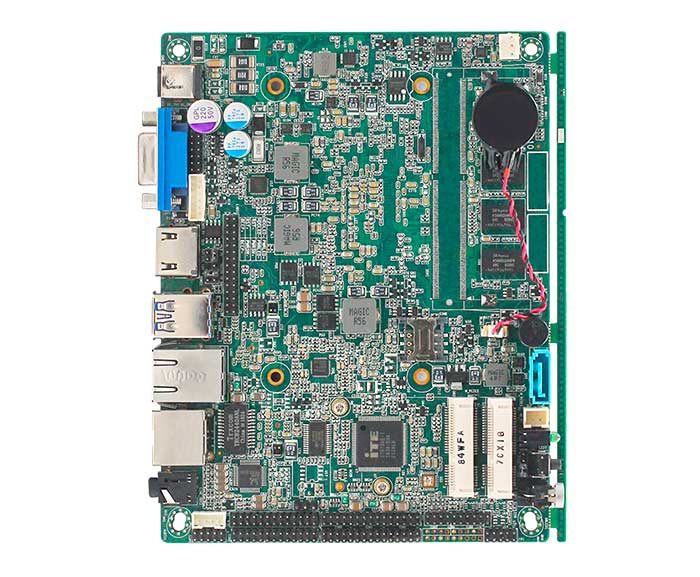

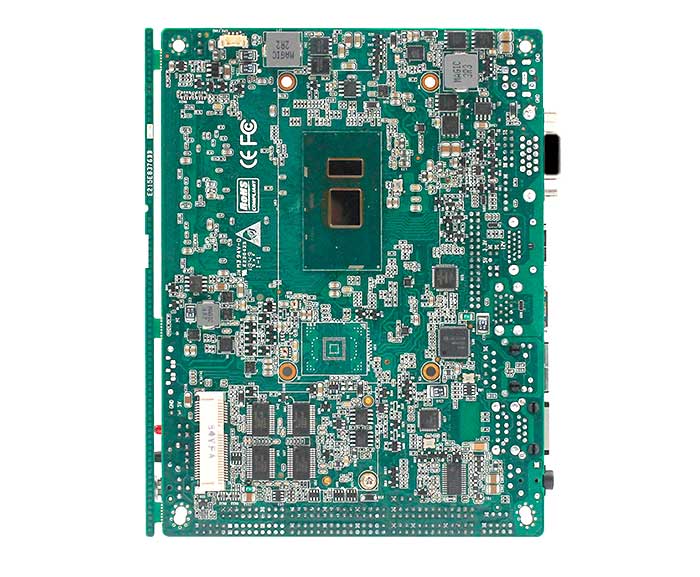

Processor system

CPU

 Onboard Intel 6th/ 7th /8th series processor, Core i3/i5/i7 CPU

CPU package

BGA

chipset

Intel? Kaby lake-U series SOC

BIOS

EFI BIOS

internal storage

Technical architecture

single channel DDR4 2133Mhz；

memory

integration 2GB/4GB/8G DDR4

slot

Add 1 slot, up to 16GB of memory

video frequency

graphics controller

Intel HD Graphics 620(I3-7100U Graphics card）；Graphics card model is related to CPU

Dual LVDS and EDP

Support dual channel 24 bit output, maximum resolution 1920 x 1200 EDP maximum resolution support 4096U 2304 (only one option)

VGA

VGA Support maximum resolution 2048x1536

HDMI

Maximum resolution support（HDMI1.4）4096*2304@30HZ Support for 4K display

Dual display support

LVDS + VGA,LVDS+HDMI,HDMI+VGA Synchronous or asynchronous display

Three display

Support LVDS VGA HDMI three-screen synchronous or asynchronous display

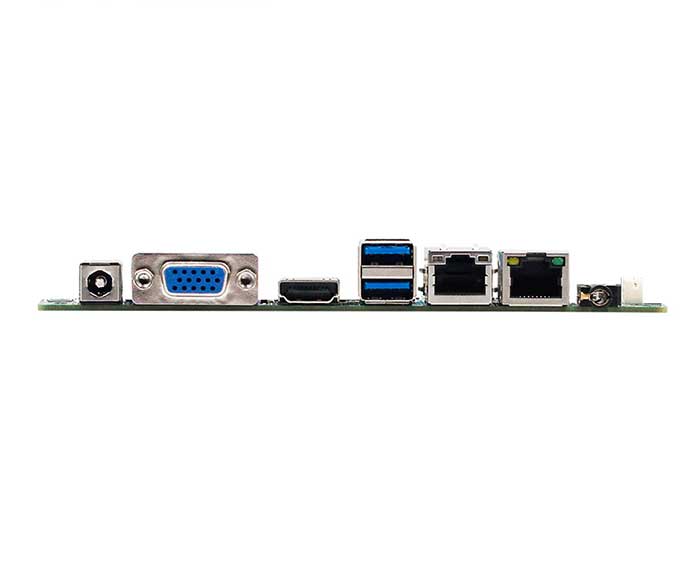

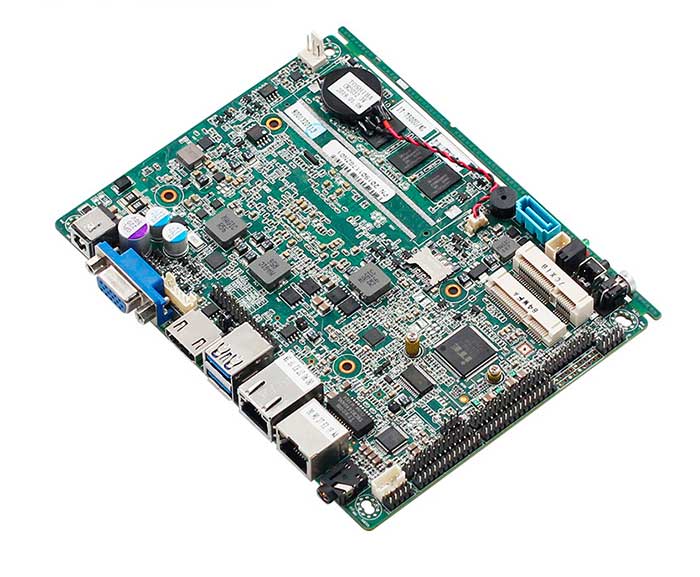

I/Orear panel

 port

1*VGA,1*HDMI,2*LAN,2*USB3.0/1*MIC-OUT/LINE-OUT

network

controller

1*Intel I211AT and 1*Intel I219VGigabit Ethernet（When the I / O interface is 4 USB, there's only one Intel I211AT card.）

audio frequency

controller

HD ALC662 audio decoding (left and right channel + microphone)

Super  I/O

controller

ITE8786E

Hardware monitoring

Watchdog timer

0 - 255 seconds to provide watchdog routines

Cooler

Aluminum with fan radiator (support automatic and manual fan speed adjustment)

Input / output interface

USB

2*USB3.0 is compatible with USB2.0 / 1.1 / 4*USB2.0, with maximum support of 5V / 1.5A

COM

5 RS-232, 1 RS422 / 485 optional RS485 supports automatic flow control

PS/2

1*PS/2 Pin interface

touch screen

Support for touch-screen 4wire 5wire 8 wire8 (optional)

GPIO

8-bit, providing routines, freely defined input / output 3.3V @ 24mA level

Extended bus

Mini-PCle

2 Mini-PCIe slots supporting PCIe and USB devices

memory

SATA

1 standard SATAIII interface with maximum transmission rate of 6GB / s

Onboard SSD

Onboard SSD 16/32/64/128G optional

M-SATA

1 Mini-PCIe M-SATA Scoket.Supports SANDISK protocol, maximum transfer rate 6gb/s

source

Power supply type

Wide voltage 8-36V input

Power consumption

35W

work environment

working temperature

-20℃ ~ +60℃

Storage temperature

-40℃ ~ +85℃

Working humidity

0% ~ 90% relative humidity, no condensation

Storage humidity

0% ~ 90% relative humidity, no condensation

Appearance dimension

size

154.8 x 117.4 mm

weight

0.5KG

attestation

CE,ROSH,FCC
